THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire

THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire

THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire 1. Application The PVC insulated wires belong
Send inquiry
Basic Info.
Model NO. THW/TW Wire
Range of Application Indoor or Outdoor Housing
Certification ISO9001, CE, CCC
Brand Yifang
Cores Number 1. 2.3
Color Red Balck Blue Green Yellow White Yellow/Green
Standards BS 6500/BS7919/309 Y,Ts 9760, IEC 227, VDE 0281
Conductor Solid or Stranded Copper
Transport Package Coil, Roll, Reel, Drum. 100m/Roll or More
Specification 20AWG-1AWG
Trademark Yifang cable
Origin China
HS Code 8544492100
Production Capacity 60000km/Year
Product Description

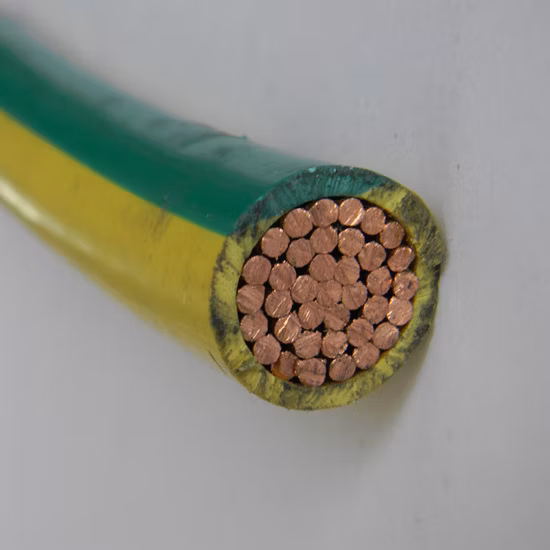

THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire

1. Application

The PVC insulated wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting,

electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V.Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300V

2. Standard

IEC 60227,IEC 60228,IEC 60332,GB/T 5023,BS 6500,BS 6004,VDE 0281,0282 ,UL 83, AS/NZS 5000. etc.

3. Specification

Conductor material: Copper, Aluminum

Conductor structure: Solid, strand, flexible

Insulation material: PVC,XLPE,PE

Core : 1,2,3,4,5

Shape of wire : round, flat

Voltage :300-1000V

THW

Nominal section

(mm2)

N/Dia

(mm)

Max outer Dia(mm)

Reference Weight

(kg/km)

Conductor resistance at 20ºC≤(Ω/km)

copper

Aluminum

copper

Aluminum

1.5(class 1)

1/1.38

3.3

20.3

12.1

1.5(class2)

7/0.52

3.5

21.6

12.1

2.5(class 1)

1/1.78

3.9

31.6

17

7.41

11.80

2.5(class2)

7/0.68

4.2

34.8

7.41

4(class 1)

1/2.55

4.4

47.1

22

4.61

7.39

4(class2)

7/0.85

4.8

50.3

4.61

6(class 1)

1/2.76

4.8

50.3

29

3.08

4.91

6(class2)

7/1.04

5.4

71.2

3.08

3.08

10

7/1.35

7.0

119

62

1.83

1.91

16

7/1.70

8.0

179

78

1.15

1.20

25

7/2.04

10.0

281

118

0.727

0.868

35

7/2.52

11.5

381

156

0.524

0.641

50

19/1.78

13

521

215

0.387

0.443


THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire


THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire


THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire


THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire


THW/TW Electrical Wire AWG Size 14 12 10 8 6 4 2 House Buidling House Wire
