Medium Voltage Industrial Urd Mv

Basic Info.

Model NO.	MEDIUM VOLTAGE POWER CABLE MV90, MV105
Wire Core Material	Aluminum, Bare Copper Wire
Certification	ISO, CCC, RoHS, CSA68.5
Model	Medium Voltage Power Cable Mv90, Mv105
Brand	Rneda
Working Temperture	Max 90 Degree or 105degre
Sheath	LLDPE, PVC
Insulation Level	100% or 133%
Sample Available	Yes
Sheath with Strip	Red Strip
Standard	UL1072, Icea S-93-639
Insulation	Tr-XLPE, Epr
Rated Voltage	5kv, 8kv, 15kv, 25kv, 35kv
UL Listed Type	Mv90, Mv105
Products Name	Medium Voltage Power Cable, Mv90, Mv105
Transport Package	Reel as Your Requirements
Specification	8AWG TO 1000MCM
Trademark	RENDA
Origin	China
HS Code	8544492100
Production Capacity	10000000FT/Month

Product Description

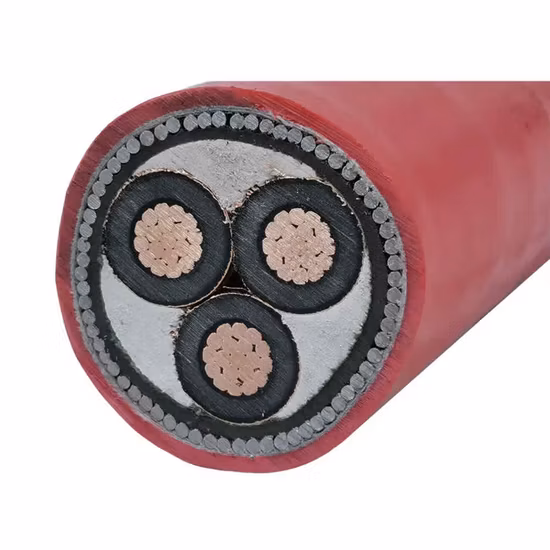

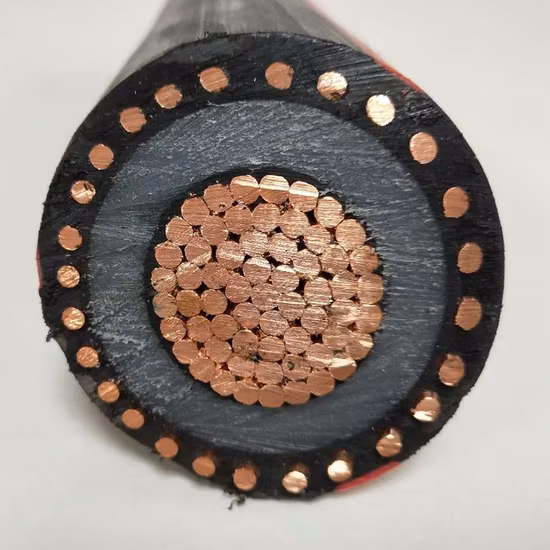

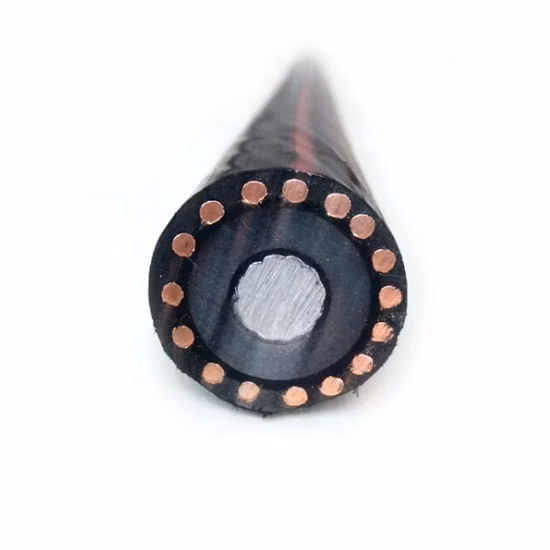

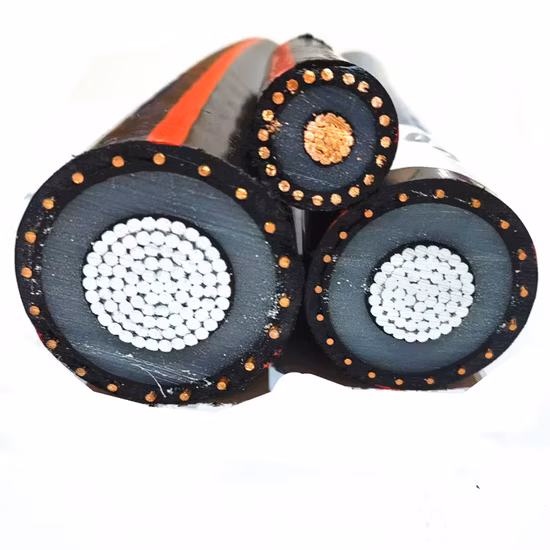

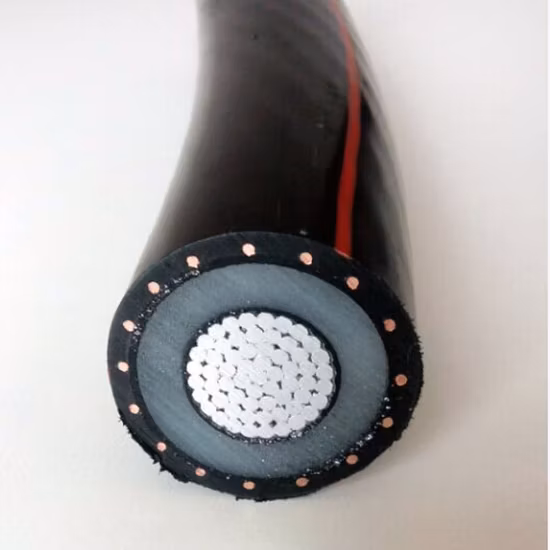

Medium Voltage Industrial 15kv 35kv Xlp Epr Urd Mv-90 & Mv-105 Power Cable UL Type 1072 Icea 94 649 Electric Aluminum Conductor Underground Distribution Wire ApplicationsFor use in power circuits up to 35 kV when installed in the open air, conduit, duct, or direct buried, for wet and dry locations. Used for power applications in chemical plants, refineries, steel mills, industrial plants, utility substations and generating stations
Standards & ReferencesPrimary UD TRXLP Cable meets or exceeds the following ASTM specifications:• B3 Soft Annealed Copper Wire• B8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft• B230 Aluminum, 1350-H19 Wire for Electrical Purposes• B231 Aluminum 1350 Conductors, Concentric-Lay-Stranded• B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical PurposesUD TRXLP Cable is manufactured to the latest edition of the following specifications, andin case of specification conflicts, in the order listed:• ANSI/ICEA S-94-649• AEIC CS-8• UL1072, When SpecifiedConstructionConductors: Bare, annealed copper per ASTM B-3, aluminum compact conductor.Internal semiconductor: Screen over the conductor, made of thermosetting semiconductor material.Insulation: Cross-linked polyethylene (XLPE)/Ethylene propylene rubber (EPR), in dry atmosphere catenary tube, through a triple layer extrusion process.External semiconductor: Screen over the insulation, made of thermosetting and strippable semiconductor material.Metallic screen: Screen of copper wires.External sheath: PVC, red or black color.LLDPETemperature Range: -40°C to +90/105°CVoltage Rating: 5KV 8KV 15KV 25KV 35KV

Phase Conductor		Neutral		Thickness Per Cond. (mils)			Diameter (mils)				Weight 1000 feet (lbs.)	Allowable Ampacities+
Size (AWG or kcmil)	Strand-ing	No. of Wires	Size (AWG)	Nominal Insul.	Insul. Shield min. Point	Approx. Jkt.	Bare Phase Cond.	Over Insul.	Over Insul. Shield	Comp. Cable	Comp. Cable	Direct Burial	In Ducts
ALUMINUM CONDUCTOR - 100% INSULATION LEVEL
2	Solid	10	14	175	30	50	258	653	733	961	453	168*	119*
2	7	10	14	175	30	50	283	678	758	986	470	168*	119*
1	Solid	13	14	175	30	50	289	685	765	993	520	193*	137*
1	19	13	14	175	30	50	322	718	798	1026	539	193*	137*
1/0	Solid	16	14	175	30	50	325	720	800	1028	591	218*	155*
1/0	19	16	14	175	30	50	352	748	828	1056	609	218*	155*
2/0	19	20	14	175	30	50	395	790	870	1098	703	248*	177*
3/0	19	25	14	175	30	50	443	838	918	1146	817	284*	201*
4/0	19	20	12	175	30	50	498	893	973	1234	993	324*	230*
250	37	16	10	175	30	50	558	963	1043	1346	1213	360*	257*
350	37	18	14	175	40	50	661	1068	1168	1396	1055	389**	319**
500	37	25	14	175	40	50	789	1193	1293	1521	1349	468**	384**
750	61	24	12	175	40	80	968	1383	1483	1798	1946	569**	468**
1000	61	20	10	175	40	80	1117	1530	1630	1988	2473	642**	542**
1250	91	25	10	220	55	80	1250	1765	1895	2253	3142	688**	604**
1500	91	30	10	220	55	80	1370	1885	2015	2373	3616	726**	637**
